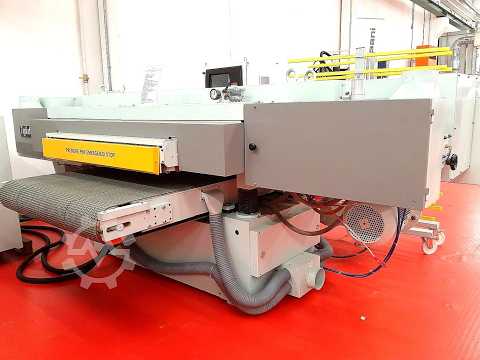

Automatic grinding machine

TAGLIABUE - COSTA LEVIGATRICI TT 3 1300

Condition: ready for operation (used), functionality: fully functional, feed rate X-axis: 12 m/min, edge thickness (max.): 10 mm, overall weight: 1,530 kg, rotational speed (max.): 12,000 rpm, tool diameter: 80 mm, TECHNICAL DETAILS Panel height: 1,060 mm Maximum edge thickness: 10 mm Minimum panel length: 140 mm Minimum panel width: 85 mm Feed speed: 12 m/min Sanding Unit Motor power: 2.4 HP Speed: 12,000 rpm Tool diameter: 80 mm Extraction port diameter: 60 mm Gluing Unit Glue pot capacity: 2 kg Glue application roller diameter: 25 mm Pressure roller cutter, large roller diameter: 100 mm Pressure roller cutter, small roller diameter: 80 mm End Trimming Unit Motor power: 1.07 HP Maximum tool diameter: 140 mm Extraction port diameter: 80 mm Milling Unit Motor power: 0.87 HP Tool diameter: 70 mm Extraction port diameter: 80 mm Scraper Unit Extraction port diameter: 60 mm Joint Scraper Unit Extraction port diameter: 60 mm MACHINE DETAILS Compressed air connection: 7 bar Dimensions & Weight Dimensions (L x W x H): 3,900 x 1,000 x 1,600 mm Weight: 1,530 kg Blsveyf Ed Ro Stk Snoc EQUIPMENT Electronic control panel with USB port Sintra software Touch probe devices Vertical and front touch probe devices with rotating discs Removable panel support arm

Condition: ready for operation (used), functionality: fully functional, cutting length (max.): 3,550 mm, cutting width (max.): 530 mm, overall weight: 9,000 kg, stroke length: 100 mm, TECHNICAL DETAILS Usable cutting length (as double guillotine): 3,200 mm Usable cutting length (as single plate shear): 3,550 mm Press stroke: 100 mm Press width: 550 mm Min. cutting width: 18 mm Blsv Stkoyf Euce Snsc Max. cutting width: 530 mm Scrap setting range: 0/50 mm Operating pressure: 6/7 bar MACHINE DETAILS Installed total power: 13.9 kW Dimensions & Weight Dimensions (L x W x H): 5,200 x 1,700 x 1,800 mm Weight: 9,000 kg EQUIPMENT Robust steel construction Blade beam made of cast iron Self-lubricating prismatic guides Adjustable rear support Press for holding the veneer package during cutting Photoelectric cells Electronic programming device Perimeter safety guards

Condition: ready for operation (used), functionality: fully functional, travel distance X-axis: 3,085 mm, travel distance Y-axis: 1,385 mm, travel distance Z-axis: 180 mm, controller model: Xylog, milling spindle speed (max.): 18,000 rpm, TECHNICAL DETAILS X-axis working area: 3,085 mm Y-axis working area: 1,385 mm Z-axis working area: 180 mm Programmable X-axis speed: 50 m/min Programmable Y-axis speed: 45 m/min Programmable Z-axis speed: 22.5 m/min Drilling unit Vertical spindles: 10 Horizontal spindles X-axis: 2 Horizontal spindles Y-axis: 2 Motor power: 2.2 kW Speed: 4,000 rpm Milling unit Electrospindle: 10 HP Speed: 18,000 rpm Engraving unit Motor power: 2.2 kW Speed: 6,000 rpm Worktable Number of worktables: 6 Vacuum suction cups: 18 Loading supports: 4 Vacuum pump Flow rate: 100 m³/h MACHINE DETAILS Control system: Xylog Installed power: 17/20 kW Compressed air: 6/7 bar Bsv Soyf Ekkjtk Snjlc Weight: 3,000 kg EQUIPMENT Automatic lubrication

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 201011RX000004, feed rate X-axis: 20 m/min, workpiece height (max.): 120 mm, edge thickness (max.): 16 mm, overall weight: 2,400 kg, rotational speed (max.): 12,000 rpm, TECHNICAL DETAILS Panel thickness min./max.: 10 mm / 120 mm Panel length min.: 140 mm Panel width min.: 60 mm Edge thickness: 0.4 mm - 16 mm Variable feed rate: 10-20 m/min Edge height: 120 mm MACHINE DETAILS Installed power: 22 kW Compressed air: 6 bar Dimensions & Weight Dimensions (L x W x H): 6,730 x 1,500 x 1,910 mm Weight: 2,400 kg EQUIPMENT 10.7" color electronic touchscreen control Servo-controlled axis infeed guide Section 2 pre-milling unit - motors 2.2 kW - 6,000 rpm - diamond tools 100 mm x 120 mm x 30 mm Infrared lamp 0-600°C - 600 Watt Cooling anti-adhesive spray system Automatic edge feeder Universal gluing station with pre-melter for PUR and EVA adhesives Quick-release glue pot Servo-controlled axis pressure units Roller edge trimming for 3 mm PVC/ABS Glue pot cleaning table End trimming unit with 2 tilting motors, each 0.50 kW - 12,000 rpm Tilting trimming unit with servo-controlled axis - motor 1.1 kW - 12,000 rpm Corner rounding unit with 2 motors - 0.22 kW - 12,000 rpm Pull-off unit with servo-controlled axis Glue scraping unit Bjv Steyf D Ubsk Snslc Buffing unit - 0.18 kW - 1,400 rpm Dryer unit 0-600°C - 4,000 Watt Soundproof enclosure Fixed panel support roller conveyor Extraction: 7 inlets Ø80 mm, 1 inlet Ø120 mm

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: 724, saw blade diameter: 600 mm, table height: 850 mm, positioning accuracy: 0.4 mm, rotational speed (max.): 3,000 rpm, working length: 8,000 mm, TECHNICAL DETAILS Saw blade diameter: 600 mm Motor power: 12.5 HP Saw blade speed: 3,000 rpm Working table height: 850 mm Extraction ports: 3 units, diameter: 100 mm Max. working length: 8,000 mm Positioning accuracy: +/- 0.4 mm Cutting capacities Bevsyf Evys Stk Snelc Width 610 mm, height: 30 mm Width 580 mm, height: 60 mm Width 530 mm, height: 100 mm Width 490 mm, height: 120 mm Width 450 mm, height: 140 mm Width 380 mm, height: 160 mm MACHINE DETAILS Drive system of saw unit: hydraulic Discharge area: 4,000 x 600 mm Compressed air requirement: 7 bar Dimensions & Weight Overall dimensions of assembled machine (L x W x H): 13,000 x 2,000 x 1,600 mm Transport dimensions (L x W x H): Machine 1,200 x 1,700 x 1,600 mm Transport dimensions (L x W x H): MATRIX pusher 8,800 x 1,500 x 1,500 mm Weight: 1,600 kg EQUIPMENT Feed system with precision rack and pinion and brushless motor Position measurement via magnetic tape Pneumatic lifting of the pusher with workpiece measuring probe Cutting cycle control via keyboard or remote PC Operator software with 99 programmable cutting cycles Operator software with 1 cutting cycle for 100 programmable dimensions Safety cover for cutting area Two-hand operation safety device Discharge flat table

Condition: not inspected (used), functionality: unexamined, feed rate X-axis: 30 m/min, edge thickness (max.): 25 mm, overall weight: 3,500 kg, rotational speed (max.): 12,000 rpm, TECHNICAL DETAILS Edge thickness min: 0.6 mm Edge thickness max: 25 mm Coil material thickness min: 0.3 mm Coil material thickness max: 3 mm Panel height min: 10 mm Panel height max: 60 mm Panel width min: 70 mm Feed speed: 8-30 m/min Extraction port diameter: 120 mm Blade diameter: 140 mm Blade spindle speed: 12,000 rpm Milling unit Milling unit tool diameter: 80 mm Milling unit motor power: 0.75 kW Milling unit spindle speed: 12,000 rpm Chamfering unit Chamfering tool diameter: 80 mm Chamfering motor power: 0.75 kW Chamfering spindle speed: 12,000 rpm Rounding unit Rounding unit motor power: 0.35 kW Rounding unit spindle speed: 12,000 rpm Sanding machine Oscillating sanding motor power: 1.5 kW Oscillating sanding speed: 1,400 rpm Blovjyf Ebvs Stk Snjc Brushing unit Brushing unit motor power: 0.3 kW Brushing unit speed: 1,450 rpm Compressed air requirement: 6 bar MACHINE DETAILS Dimensions & weight Dimensions (L x W x H): 8,200 mm x 1,500 mm x 1,650 mm Weight: 3,500 kg EQUIPMENT Fully automatic edge banding machine Sanding unit Processing of wood, veneer, PVC, ABS, and furniture edges CE certification Automatic pressure beam lifting Controlled guidance prior to sanding Group of 2 sanding units Glue pot with pre-melting unit Pneumatic pressure rollers Soundproof safety enclosure Tilting end trimming unit Edge sanding unit Feed speed variator

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, cutting length (max.): 4,400 mm, cutting width (max.): 4,300 mm, main saw diameter: 350 mm, controller model: G-VISION, Equipment: scorer, TECHNICAL DETAILS Cutting dimensions: 4,400 x 4,300 mm Saw blade projection: 90 mm Saw carriage feed speed: 5 - 100 m/min Pusher feed speed: 125 m/min Pusher return speed: 60 m/min Return speed: 100 m/min Main saw blade diameter: 350 mm Main saw motor power: 12.5 HP Scoring saw diameter: 180 mm Scoring saw motor power: 2 HP Extraction port: 200 mm Compressed air: 6.7 bar MACHINE DETAILS Control system: G-VISION Dimensions & Weight Dimensions (L x W x H; installed): 6,400 x 7,500 x 1,800 mm Dimensions (L x W x H; for transport) Machine: 6,500 x 1,500 x 1,800 mm Dimensions (L x W x H; for transport) Pusher: 5,200 x 1,200 x 1,200 mm Total weight: 3,200 kg EQUIPMENT Automatic horizontal panel saw with clamps Frontal stack loading Three front air cushion tables Automatic pusher with lateral and top guides as well as 7 pneumatic clamps Automatic side alignment Automatic saw blade projection adjustment Electronic control of speed and position Easy access to saw carriage Bsv Stoyf Epyok Snelc Pneumatic quick-change unit for tools Multitasking operating system Microsoft Windows XP/2000/NT Sequential control of cutting patterns Parametric control of feed speed Direct control of machine functions Cutting pattern adjustment

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 60 mm, workpiece length (max.): 3,000 mm, overall weight: 2,700 kg, TECHNICAL DETAILS Working area X-axis: 3,000 mm Working area Y-axis: 1,000 mm Working area Z-axis: 60 mm Maximum workpiece length: 3,000 mm Minimum workpiece length: 90 mm Maximum workpiece width: 1,000 mm Minimum workpiece width: 70 mm Maximum workpiece height: 60 mm Minimum workpiece height: 8 mm Vertical electrospindle power: 4.8 HP Circular saw unit diameter: 150 mm Circular saw unit power: 2.3 HP Vertical drilling spindles: 29 Horizontal drilling spindles (X-axis): 8 Horizontal drilling spindles (Y-axis): 2 MACHINE DETAILS Compressed air: 7/8 bar Total installed power: 20 kW Machine weight: 2,700 kg EQUIPMENT Numerical control with Biesseworks software Infeed table with motorized belts (left) 2 panel clamps Outfeed table with motorized belts (right) Protection for machining head with emergency stop front mats Bev Stsyf Elzsk Snslc Transfer system for panel loading and unloading with aluminium profiles Belt-driven table for panel transfer/lifting bar BiesseWorks machining programming system
